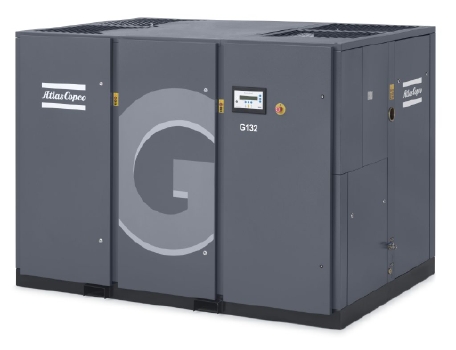

G90-355/G110-315VSD

Rate:

0.0000/5

( 0 reviews )

Item NO.: V017625 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$0.00

Qty：

$0.00

Shipping：

Calculate Shipping Cost

1, the modular design of the overall
l standard container type compressor parts without spin transport. Simply connect the power, compressed air and cooling water piping (for water-cooled models), it can be put into use.

2, oil separator
l doubles design ensures up to 8000 hours of life
l strengthen the separation and the separating element effect, reducing the amount of residual oil in the compressed air, reduce the load on post-processing equipment
l reduce the pressure drop separator and downstream equipment, reduce energy loss
l ensure low fuel consumption and low maintenance costs

3, superior screw host
Through careful design of the bearing, low wear, high l patented asymmetric rotor profiles and reliability
l perfect realization of minimum energy consumption under maximum air flow
l new design; auger rotor reduction of 5% -6% of energy consumption
l super energy-saving effect, impurities get P & A Best Product title

4, heavy oil filter
l Absolute extraordinary capacity to ensure the cleanliness of the compressor oil system
l raise rotor, bearings and gears reliability in harsh environments
l life up to 8000 hours and replacement simple and fast, extend the maintenance cycle, reducing maintenance costs

5, loading and unloading valve
l by adding / unloading control, adjust the compressor output volume, ensure the stability of the system pressure
l simple structure, less moving parts, no maintenance

6, high efficiency motor
l TEFC IP55 motor can be long-lasting and stable operation at temperatures up to 55 ℃ harsh environment
l for maximum overall efficiency

7, heavy duty air filter
l Dust-step filtration system, filtration precision of up to 99.9%, for a variety of heavy dust environments
l the pre-separation process can reduce the burden of the fine dust filter, without decreasing the filtering effect of the premise, to extend the life of the filter element
l protects the compressor components to ensure air quality, extend the service life of the entire air system

VSD: reduce energy expenses
Energy costs often account for 70% of a compressor's lifecycle cost. Production of compressed air may account for 40% of all electric power plant costs. In almost every plant, gas consumption will be with different time periods and different, has its high and low peak hours. Atlas Copco advanced inverter technology, gas consumption can be fully in accordance with the requirements of supply, not only can save a lot of energy, while also protecting the environment for future generations. Atlas Copco technology and continuous investment in research and development in this, at present, we are the best on the market capable of supplying the full range of frequency models of the manufacturers.

Saving up to 35%
Atlas Copco inverter technology by automatically adjusting the motor speed to achieve a perfect match with gas demand, thus saving energy costs by up to 35%. Life-cycle cost of a compressor can be reduced by an average of 22%. In addition, due to the application of the conversion function further reduces overall system pressure pipe network, which is a significant reduction in your energy consumption throughout the production process.

Dual pressure set point and the second shutdown delay
At the meeting the majority of the compressed air demand fluctuations in the production process, therefore, may cause the low amount of energy wasted. Only with standard or graphic Elektronikon® controller, you can manually or automatically create two different system pressure segments, during the low dosage to optimize energy use and reduce costs.
In addition, the tip of the second delay shutdown (DSS) will be required depending on the actual operation only when necessary drive motor. Reduce motor run times while maintaining the required system pressure, power consumption is at a minimum.

Technical Parameters

G90-355kw fixed-frequency unit -50Hz

装机功率	最大工作压力		流量 FAD（1）		噪音等级（2）	重量				尺寸
	标准机型/全性能机型		标准机型/全性能机型		噪音等级（2）	标准机型全性能机型				标准机型全性能机型
	Bar（e）		l/s	m³/min	dB（A）	风冷	水冷	风冷	水冷	L	W	H	L	W	H
G90-355kw
G90	5.5	-	317	19	73	2635	2535	-	-	2953	1720	2010	-	-	-
G90	7.5	7.3	280	16.8	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G90	8.5	8.25	263	15.8	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G90	10	9.75	240	14.3	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G90	14	12.75	185	11.1	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G110	5.5	-	383	23	73	2960	2830	-	-	2953	2005	2010	-	-	-
G110	7.5	7.3	334	20	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G110	8.5	8.25	313	18.8	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G110	10	9.75	284	17	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G110	14	12.75	231	13.9	73	2620	2520	3165	3010	2953	1720	2010	3846	1720	2010
G132	5.5	-	450	27	73	3370	3240	-	-	2953	2005	2010	-	-	-
G132	7.5	7.3	401	24.1	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G132	8.5	8.25	381	22.9	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G132	10	9.75	350	21	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G132	14	12.75	280	16.8	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G160	5.5	-	546	32.8	73	3763	3823	-	-	3560	2120	2400	-	-	-
G160	7.5	7.3	506	30.4	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G160	8.5	8.25	482	28.9	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G160	10	9.75	446	26.7	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G160	14	12.75	361	21.7	73	3370	3240	3920	3580	2953	2005	2010	3846	2005	2010
G200	5.5	-	669	40.1	75	3993	4053	-	-	3560	2120	2400	-	-	-
G200	7.5	-	592	35.5	75	3993	4053	-	-	3560	2120	2400	-	-	-
G200	8.5	-	545	32.7	75	3993	4053	-	-	3560	2120	2400	-	-	-
G200	10	-	513	30.7	75	4323	4353	-	-	3560	2120	2400	-	-	-
G250	5.5	-	920	55.2	75	6915	6219	-	-	4174	2120	2500	-	-	-
G250	7.5	-	681	40.8	75	4293	4353	-	-	3560	2120	2400	-	-	-
G250	8.5	-	667	40	75	4293	4353	-	-	3560	2120	2400	-	-	-
G250	10	-	626	37.5	75	4293	4353	-	-	3560	2120	2400	-	-	-
G300	5.5	-	1019	61.1	75	-	8860	-	-	4174	2120	2500	-	-	-
G315	5.5	-	1114	66.8	75	-	8960	-	-	4174	2120	2500	-	-	-
G315	7.5	-	918	55.1	74	8430	7900	-	-	4174	2120	2500	-	-	-
G315	8.5	-	870	52.2	74	8430	7900	-	-	4174	2120	2500	-	-	-
G315	10	-	804	48.2	74	8430	7900	-	-	4174	2120	2500	-	-	-
G355	5.5	-	1245	74.7	75	-	9060	-	-	4174	2120	2500	-	-	-
G355	7.5	-	1003	60.2	75	8530	8000	-	-	4174	2120	2500	-	-	-
G355	8.5	-	960	57.6	75	8530	8000	-	-	4174	2120	2500	-	-	-
G355	10	-	886	53.2	75	8530	8000	-	-	4174	2120	2500	-	-	-
G355	13	-	773	46.4	75	8530	8000	-	-	4174	2120	2500	-	-	-

技术参数

G110-315kw 变频机组

装机功率	工作压力bar（e）		流量FAD		噪音级别	重量		尺寸
装机功率	最大	最小	l/s	m³/min	dB（A）	风冷	水冷	L	W	H
G110VSD-14	14	4	68-329	4.1-19.8	77	2658	2558	2953	1720	2010
G132VSD-14	14	4	164-418	9.8-25.1	77	3608	3478	2953	2005	2010
G160VSD-14	14	4	164-494	9.8-29.6	77	3608	3478	2953	2005	2010
G250VSD-13	13	4	162-663	9.7-39.8	77	4400	4460	3560	2120	2400
G315VSD-10	10	4	278-840	16.7-50.4	77	6470	6540	4220	2280	2550
